HT-P05
Digital pressure transmitter
Flameproof 4–20 mA pressure transmitter with a local LCD. Range, thread and output built to your process.
- 0–5 barStandard range
- 4–20 mAOutput
- ±0.25 % FSAccuracy
- 24 V DCSupply
₹10,000 per unit + GST, ex-works Delhi
Built to order: tell us the range, thread size and output you need and the unit is made to that spec — not pulled off a shelf and shimmed to fit.

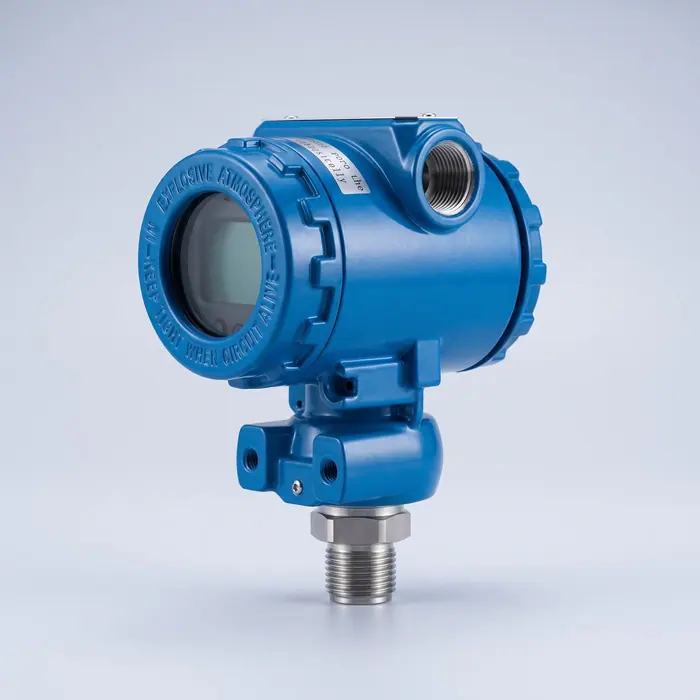

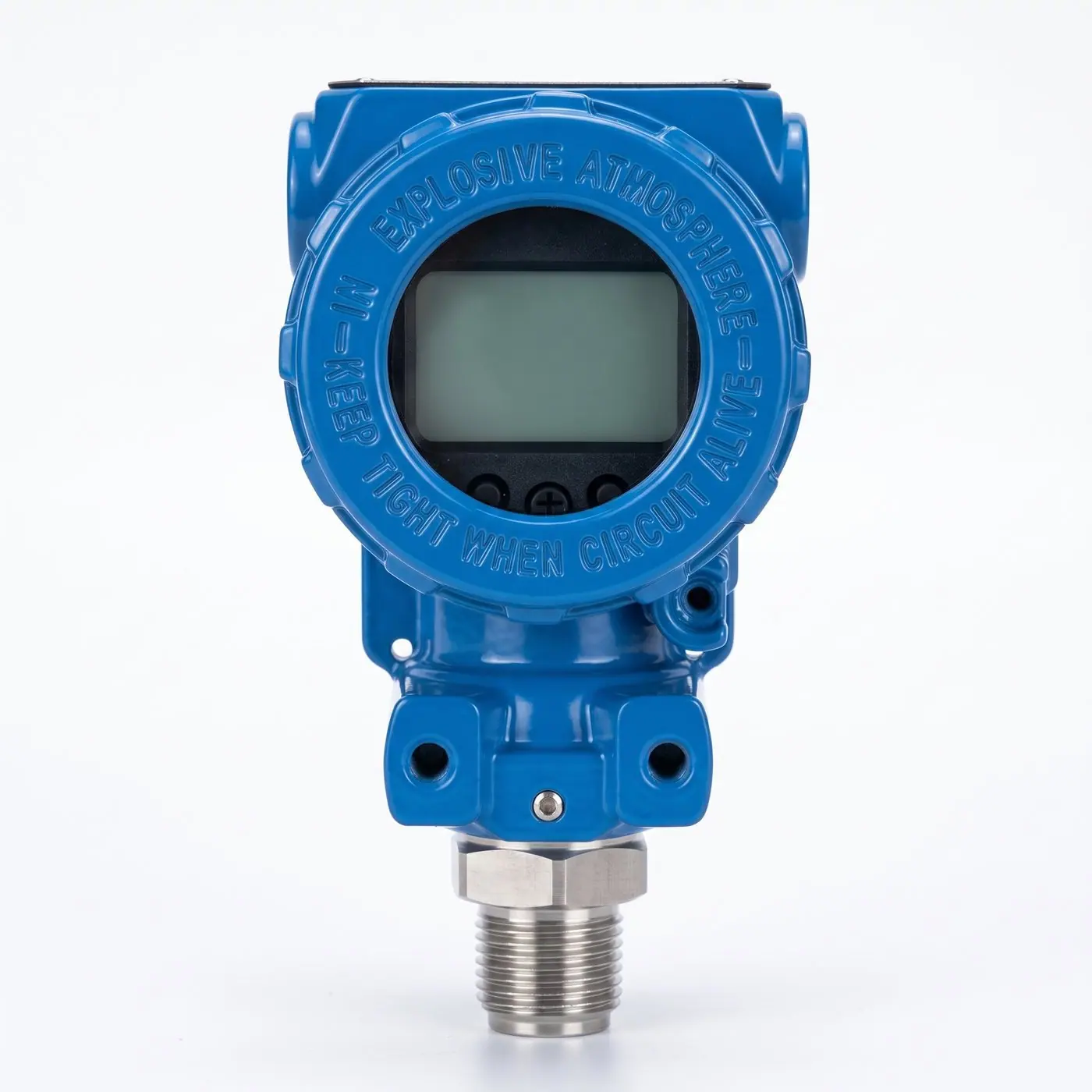

A straightforward, rugged pressure transmitter for process lines, hydraulics and utilities. The flameproof die-cast housing carries a local LCD so an operator can read the line pressure at the tapping point without opening a panel.
The standard build is 0–5 bar with a 4–20 mA output and a ½″ stainless steel process connection. Ranges, threads, cable entries and output options are configured per order.
What it does
Every unit is assembled and tested in Delhi by Engineers Point.

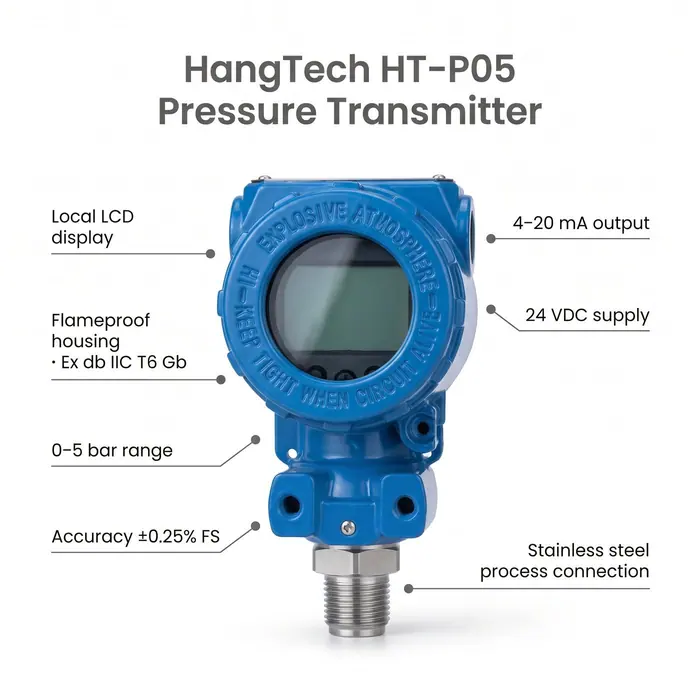

- Local LCD at the tapping pointRead line pressure on the instrument, not just on the panel — useful during commissioning and fault-finding.
- Flameproof housingEx db IIC T6 Gb die-cast aluminium enclosure, certified for hazardous areas.
- Stainless steel wetted partsSS316L diaphragm and stainless process connection for corrosive and washdown service.
- Made to your rangeRange, thread size, cable entry and output configured per order rather than forced to a stock spec.
Specifications
Figures below are the standard build. Anything marked to order is confirmed on your enquiry.
| Model | HT-P05 |
|---|---|
| Measured variable | Pressure |
| Standard range | 0–5 bar |
| Accuracy | ±0.25 % FS |
| Output | 4–20 mA |
| Supply | 24 V DC |
| Display | LCD |
| Explosion protection | Ex db IIC T6 Gb |
| Certificate no. | CCRI24.8186 |
| Ingress protection | IP65 |
| Wetted parts | SS316L diaphragm, stainless steel connection |
| Process connection | ½″ (15 mm) thread |
| Housing | Die-cast aluminium, powder-coated |
| Warranty | 2 years |
Ordering options
What you can change, and what is fixed.
| Parameter | Standard | Options |
|---|---|---|
| Pressure range | 0–5 bar standard | Other ranges built to order — send your working and maximum pressure |
| Process connection | ½″ thread standard | Alternative threads and sizes to order |
| Output | 4–20 mA | Other output options on request |
| Cable entry | M20 gland | Conduit entry to order |
| Housing | Die-cast aluminium | Standard on all units |
Every configurable field above is confirmed on your purchase order before manufacture. Send the range, thread and quantity on WhatsApp and we quote the same working day.
Certificates & compliance
Documentation is issued against the serial number on your unit and sent with the despatch papers.
| Document | Covers |
|---|---|
| Inspection record sheet | Per-unit pressure calibration, certified to ±0.25 % FS |
| Explosion-protection certificate | Ex db IIC T6 Gb flameproof enclosure, certificate CCRI24.8186 |

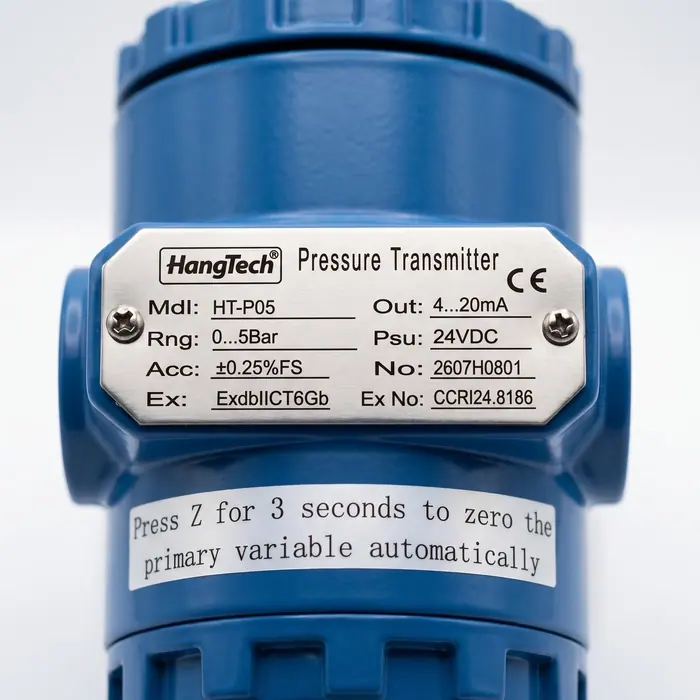

| CE marking | Carried on the instrument nameplate |
| Test & guarantee certificate | 2-year warranty against manufacturing defects |
Need the certificates before raising a PO? Ask for the document pack on WhatsApp and we send it against your enquiry — no charge, no obligation.

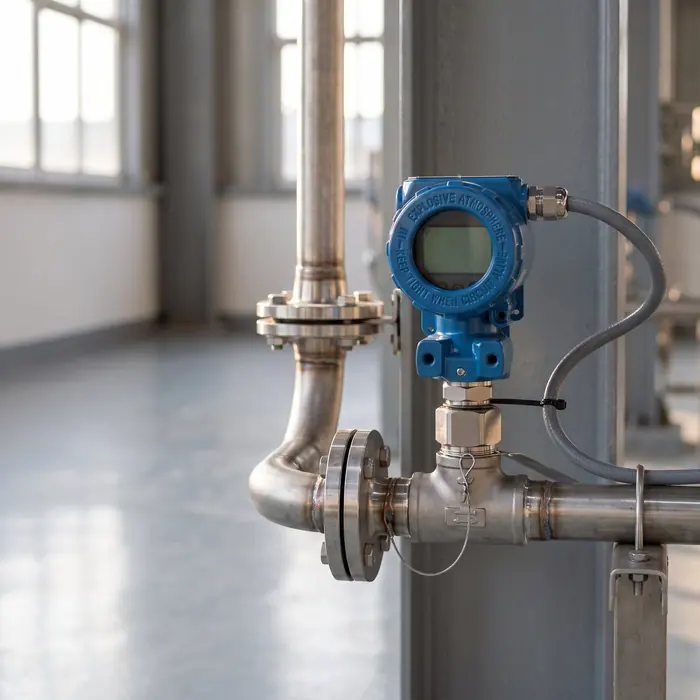

Where it goes to work
- Hydraulic and pneumatic machinery
- Pump discharge and header lines
- Water and effluent treatment
- HVAC chillers and compressors
- Chemical dosing lines
- Oil & gas skids in hazardous areas
