HT-T100
Digital temperature transmitter

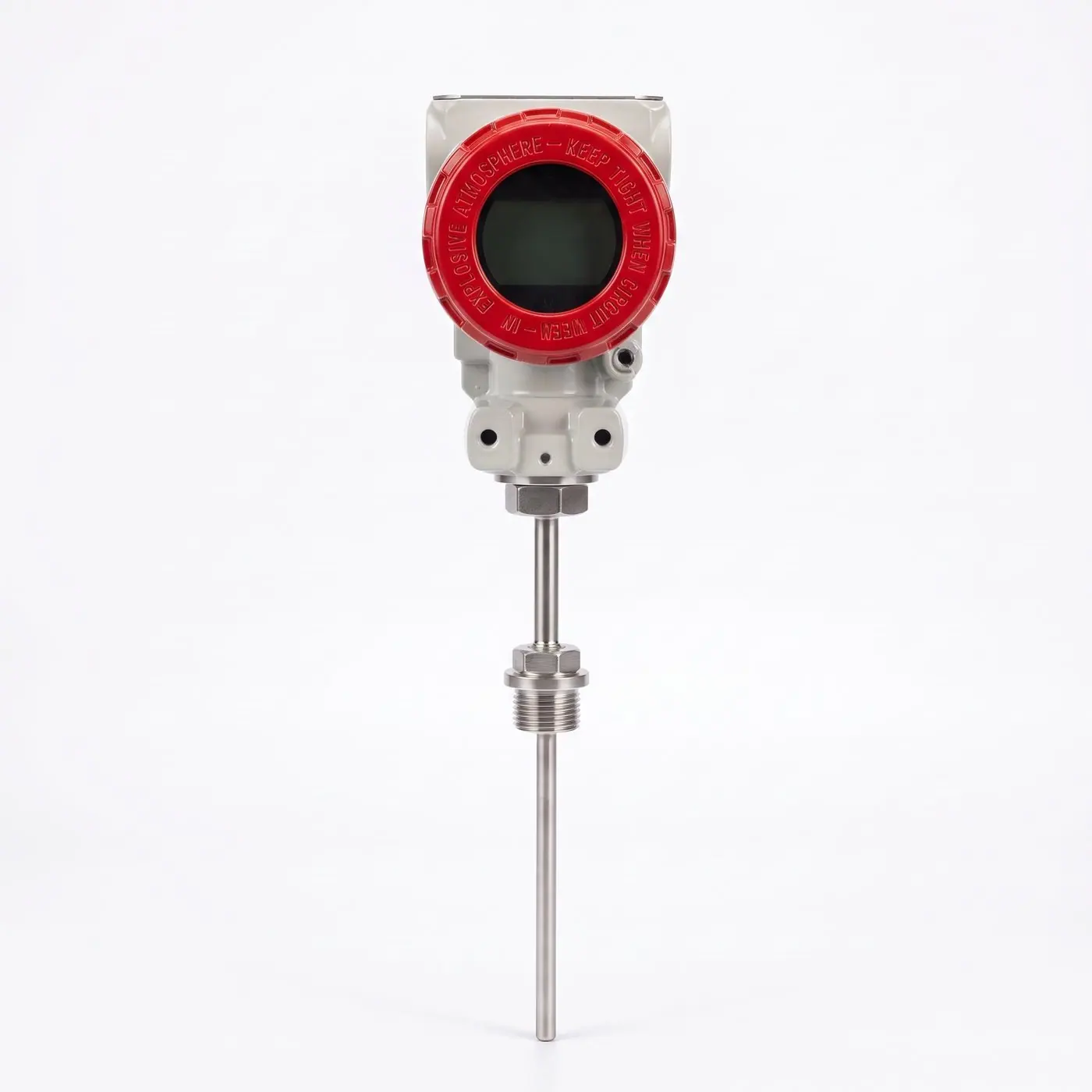

Flameproof temperature transmitter with a stainless steel probe and local LCD. Probe length and range made to order.
- Made to orderTemperature range
- Made to orderProbe length
- Ex db IIC T6 GbProtection
- ½″ threadProcess connection
₹10,000 per unit + GST, ex-works Delhi
The probe is the point: insertion length, range and thread are made for your thermowell instead of forcing your process to fit a stock probe.

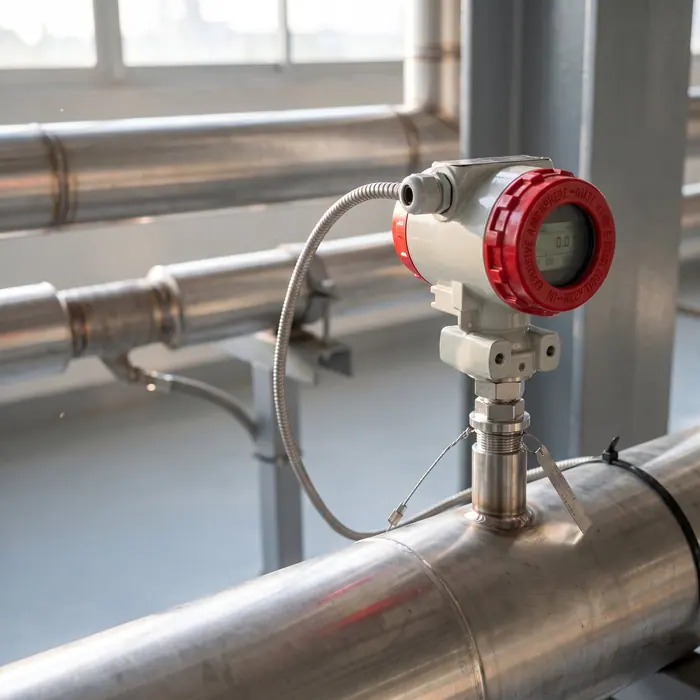

A flameproof temperature transmitter for process lines, tanks and thermowells. The stainless steel probe carries a threaded process connection part-way down its length, so insertion depth is set for the vessel it goes into.
The local LCD shows the reading at the tapping point. Range, probe length, thread size and output are confirmed against your process conditions before manufacture.
What it does
Every unit is assembled and tested in Delhi by Engineers Point.

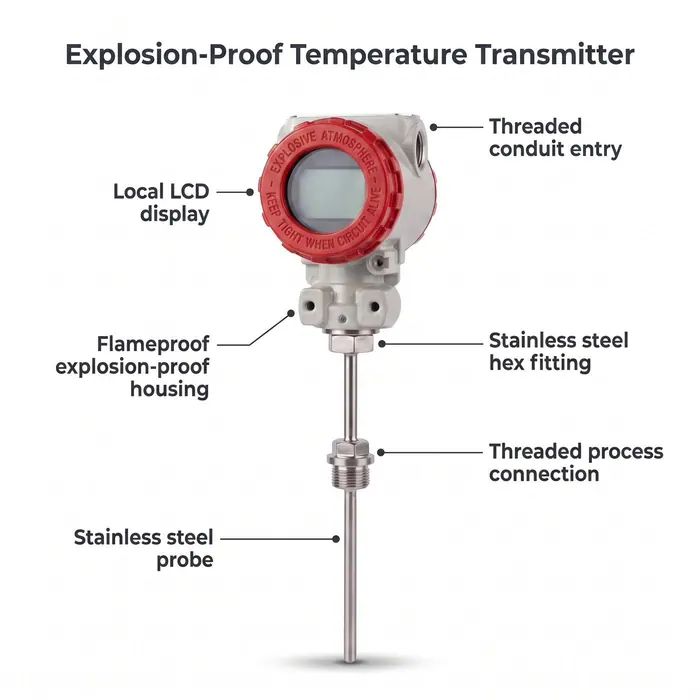

- Stainless steel probeMade to the insertion length your thermowell or tank needs, with a threaded process connection along the stem.
- Local LCD at the tapping pointRead temperature on the instrument without opening a panel.
- Flameproof housingDie-cast aluminium enclosure with threaded covers, built for hazardous and outdoor areas.
- Configured per orderRange, probe length, thread and output are set to your process rather than a fixed catalogue spec.
Specifications
Figures below are the standard build. Anything marked to order is confirmed on your enquiry.
| Model | HT-T100 |
|---|---|
| Measured variable | Temperature |
| Temperature range | Made to order — confirm on enquiry |
| Probe | Stainless steel, insertion length to order |
| Output | Confirm on enquiry |
| Supply | Confirm on enquiry |
| Display | LCD |
| Explosion protection | Flameproof housing — certificate confirmed on enquiry |
| Process connection | ½″ (15 mm) thread standard |
| Housing | Die-cast aluminium, powder-coated |
| Warranty | 2 years |
Ordering options
What you can change, and what is fixed.
| Parameter | Standard | Options |
|---|---|---|
| Temperature range | To order | Send your minimum, working and maximum temperature |
| Probe insertion length | To order | Measured from the process thread to the probe tip |
| Process connection | ½″ thread standard | Alternative threads and sizes to order |
| Output | To order | Confirm the signal your panel expects |
| Cable entry | M20 gland | Conduit entry to order |
Because this model is built per order, the specification table above intentionally leaves range and output open — those are set from your process conditions when you enquire.
Certificates & compliance
Documentation is issued against the serial number on your unit and sent with the despatch papers.
| Document | Covers |
|---|---|
| Inspection record sheet | Per-unit calibration record against your ordered range |
| Explosion-protection certificate | Flameproof enclosure — certificate number confirmed with your order |
| CE marking | Carried on the instrument nameplate |
| Test & guarantee certificate | 2-year warranty against manufacturing defects |
Need the certificates before raising a PO? Ask for the document pack on WhatsApp and we send it against your enquiry — no charge, no obligation.
Where it goes to work
- Boilers, steam and hot-water systems
- Tanks, vessels and thermowells
- Chemical and pharmaceutical process lines
- Furnace and dryer outlets
- HVAC and refrigeration plant
- Cold stores and process cooling
